From substations to industrial boards, compare the right protection path
Selecting the correct relay is not only about fault detection. In electrical distribution applications, relay choice affects feeder stability, nuisance tripping, backup power continuity, embedded generation integration, earth fault coordination, and operational efficiency. The guide is built to help engineers, panel builders, consultants, and technical buyers match the right relay to the right environment.
Whether you are working on utility and municipal feeders, LV/MV substations, solar and embedded generation, or industrial distribution boards, the goal is the same: better protection coordination, better visibility, and fewer costly interruptions.
Application Fit for Electrical Distrubution Industry

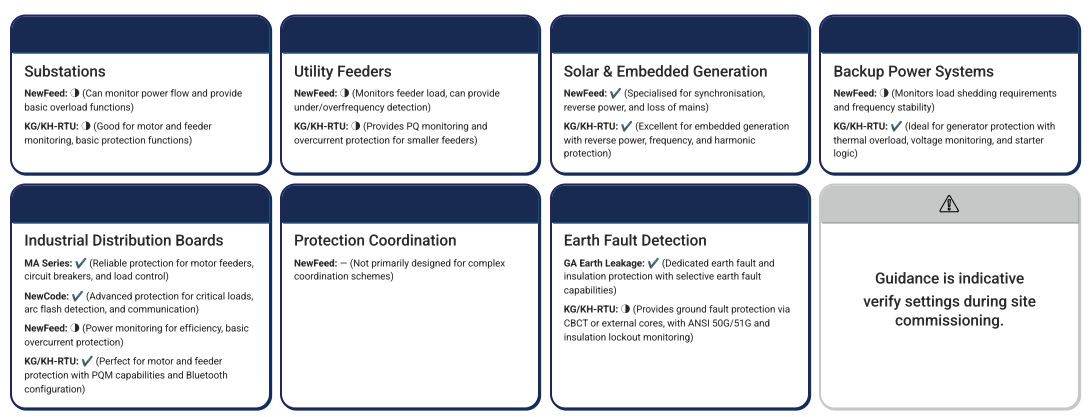

Applications in Electrical Distribution
Utility and Municipal Feeders
Feeder applications require visibility into voltage dips, long-line capacitance, reverse power, harmonic distortion, overloads, and PQ imbalance. A common issue is incorrect CT sizing or overlooking power quality-related nuisance trips. The guide highlights NewFeed and KGK feeder relays as strong-fit solutions for these duties.
Substations (LV/MV)
Substation protection demands clear fault discrimination, earth fault coordination, and stable monitoring across multiple outgoing feeders. The guide notes that poor discrimination between earth leakage and feeder zones, or relying on earth leakage devices for incomer trending, can create problems. KGK and GA / GA+ are presented as best-fit options here.
Solar and Embedded Generation
Embedded generation requires synchronisation awareness, reverse power protection, voltage rise and dip management, and attention to harmonics and inverter behaviour. The guide identifies NewFeed, GA+, and KG KH Relay as strong-fit choices for these environments.
Backup Power Systems
For UPS and genset changeover environments, protection must account for source switching stability, voltage imbalance, PQ disturbances, and coordination between generator and grid protection zones. The guide recommends NewFeed, GA / GA+, and KG KH Relay for these duties.
Industrial Distribution Boards and MCCs
Industrial boards often face high-frequency leakage from VFDs, overloads, insulation degradation, and long cable effects. The guide warns against using non-adjustable earth leakage relays or underestimating PQ impacts. Best-fit relays here include GA+, NewFeed for PQ-sensitive feeders, and KG KH Relay.
Need guidance on relay selection for your needs?
Why the NewFeed Relay Matters for Grid Stability
As electrical networks become more complex, with solar, hybrid systems, and variable loads placing added pressure on performance, relay choice plays a critical role in maintaining grid stability. This video highlights why the NewFeed Relay matters in modern distribution environments, helping engineers and operators improve protection, respond to changing load conditions, and support more stable network performance across utility and industrial applications.

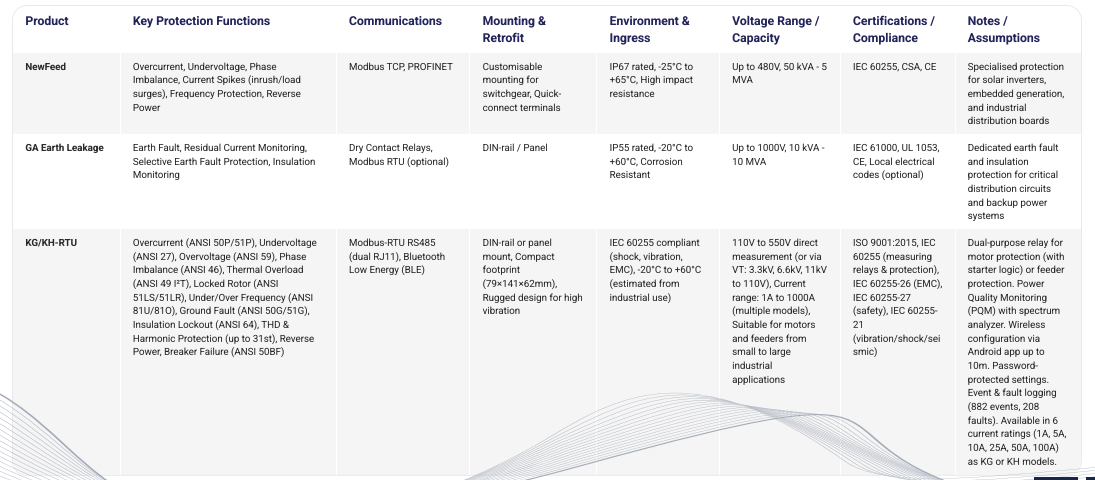

Table of Technical Attributes Fit for Electrical Distribution Applications
Need guidance on relay selection for your needs?
Download Our Electrical Distribution Relay Comparison Guide
Complete the form below to access the full Electrical Distribution Relay Comparison Guide and speak to NewElec about the right-fit protection path for your site.
Electrical Distribution Network Protection with Substation Relay Integration
NewElec’s electrical distribution protection relays support substations, utility feeders, and integrated renewable generation with reliable fault detection, communication-ready integration, and improved operational stability. The guide highlights successful substation relay integration supported by dual-path communications and SCADA/DCS compatibility.
Customer Testimonial
FAQ
Which relay is best for utility and municipal feeders?
The guide highlights NewFeed for feeder and PQ-related duties, with KGK feeder relays also positioned for utility-grade feeder protection depending on the application.
What should I watch for in solar and embedded generation protection?
Key signals include reverse power, harmonics, voltage rise or dip, islanding, inverter instability, and frequency drift. The guide recommends using relays designed for embedded generation environments rather than standard relays not built for those conditions.
Why is earth fault coordination important in electrical distribution?
Without proper earth leakage coordination, upstream devices may trip before downstream devices, creating unnecessary outages and poor selectivity across the network.
Can one relay cover both motor and feeder protection?
In some environments, yes, but not always. The guide makes it clear that some relays are better suited to feeder-level monitoring and coordination, while others are designed for motor or earth fault-specific duties.
What should be verified during commissioning?
Relay fit guidance is indicative. Final settings, thresholds, and coordination values should always be verified during site commissioning to match the actual network and operating conditions.
