KD Series Relays

Request Quote

*Compulsory fields.

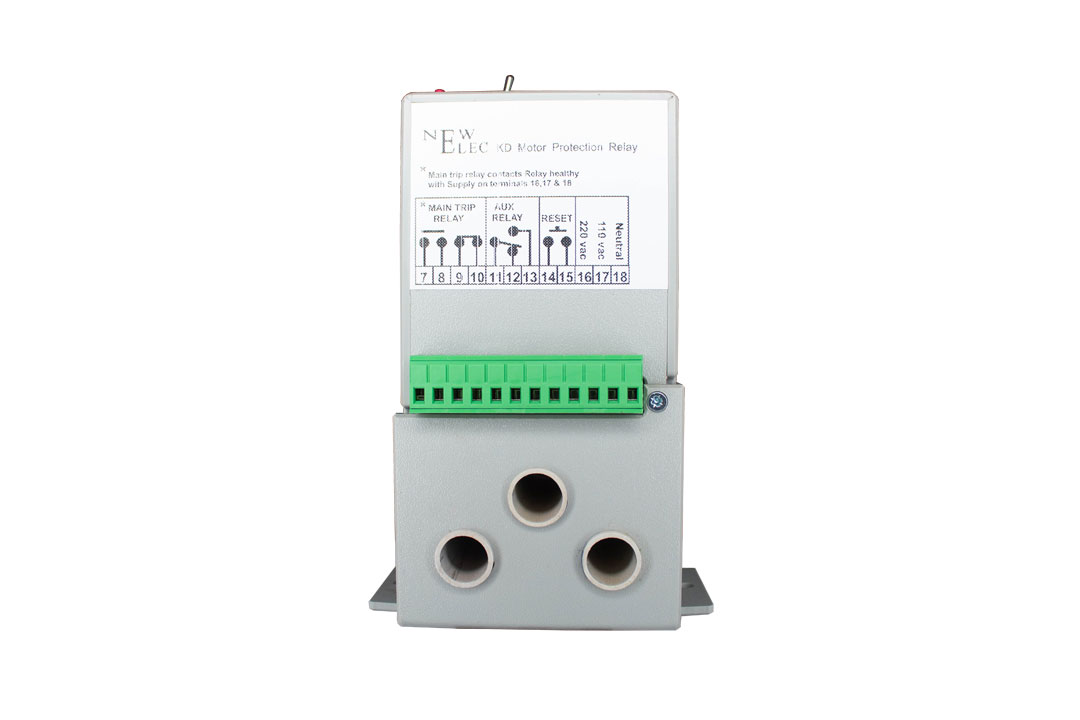

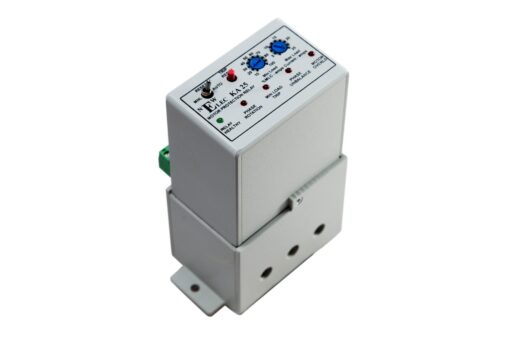

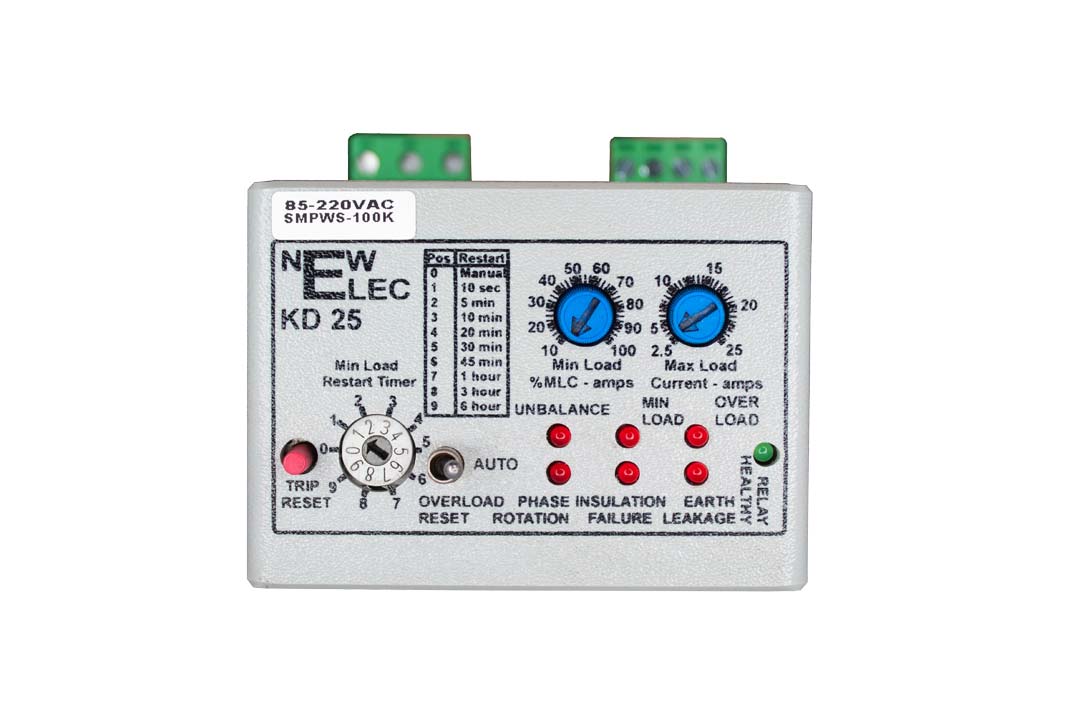

A comprehensive low voltage electronic motor protection relay encompassing new and unique features. Designed for conveyor, compressor, crusher, fan and pump motor protection, these relays boast a wide range of user-selectable protection features. Easy to setup via a man-to-machine interface or via computer with free setup software, the user selectable settings are a pleasure to work with. Thermal overload, earth insulation lockout, earth leakage and short-circuit protection, along with frequency and power factor measurement, are just some features which, combined with the 2 000 event records and 60 last fault records, make this a world class protection relay.

Power Measurement (Real and Apparent) provide real time power utilisation monitoring, as well as power consumption monitoring over extended periods. All features and information can be accessed through an external Profibus communication unit.

Accessories include a door-mounted KD-FLED unit for indication, a Remote Programming Unit (RDU-420) and a portable MMI unit with infrared link.

Brochure

PDF Download

KD Brochure 01A

PDF Download

Cable Theft

PDF Download

SMS Module Cable Theft Detection Alert Flyer

PDF Download

Pump Protection and Control System Flyer

Product Kits

PDF Download

KD Kit

Documentation

PDF Download

KD Installation Manual

PDF Download

KD MMI-420-EP User Manual 01B

PDF Download

KD RDU-420 User Manual 00C

PDF Download

KD Relay Bootloader Frontend Manual 01A

PDF Download

KD Relay Installation Manual 01A

PDF Download

KD Relay User Manual 01H

Presentations

PDF Download

KD Presentation

Config Software

PDF Download

KD Relay Frontend 02A

Firmware Updates

PDF Download

KD_ENC_1L-00

PDF Download

KD_ENC_1N-00

PDF Download

KD_ENC_1P-01

PDF Download

KD_ENC_2A-00

Communication Config Protocol Files

PDF Download

NEWEF881

Product List

Product Code KD Series Models  KD1 to KD400
FPR0127 KD1
FPR0162 KD5
FPR0160 KD10
FPR0164 KD25
FPR0166 KD50
FPR0173 KD100
FPR0175 KD200
FPR0176 KD400
Product Code KD/KE Accessories
CAB0100 KD Cable RJ11 to RJ11
CAB0101 KD Cable DB9 to RJ11
CAB0104 KD Cable RJ11 to Header
FPR0202 KD-IRDA-CAB-01-KD
FPR0205 KD-IRDA-CAB-01-PC
FPR0208 KD-VOLT-Converter 1050/525V
FPR0216 KD-Insulation Lockout Converter-01
FPR0217 KD-FLED Remote Display Unit with CAB0100
FPR0218 KD-RDU420 MMI Display Unit 4X20 LCD Display with CAB0100
FPR0225 KD-MMI-420-EP Explosion proof 4X20 Display unit with USB Stick for  Event Record Uploading
FPR0454 KD/KE SMS Controller
FPR0126 KD/’KE RDU 420 Batt Operated in Toolbox
