OLR 8 & UCR 80 Series Relays

Request Quote

*Compulsory fields.

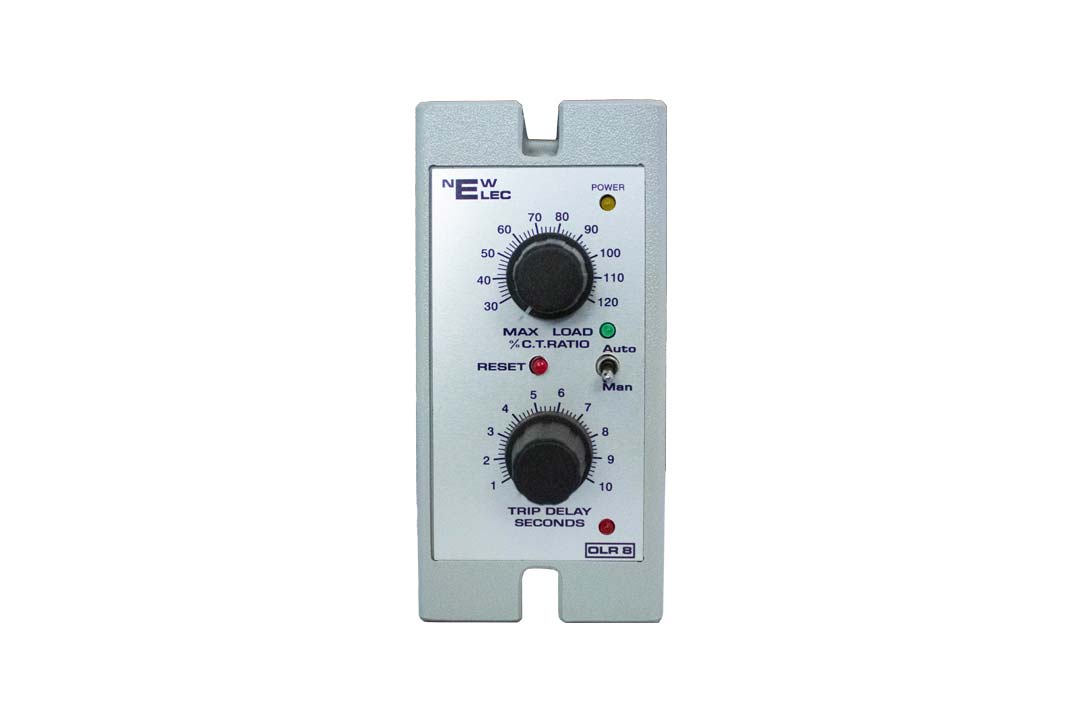

The OLR 8 relay of electronic motor protection relays monitor one phase of a 3 phase motor through a 1 Amp secondary input from a current transformer.

The NewElec OLR 8 is able to prevent mechanical breakdowns related to impact torque conditions such as: Screw conveyors Bucket elevators Gear boxes, couplings chains, preparatory overload warning or control function prior to overload trip .Stall detection of any kind including a moving part driving into a mechanical end stop regulating current demand. The NewElec UCR 80 is able to prevent: Problems related to blocked delivery or loss of prime in pumping applications, identification of conveyor belt installations where they are running idle, sheared couplings ,V belt slippage or blocked filters on ventilation fans Problems relating to drop in efficiency due to pump impeller wear.

Equipped with one main trip contact which energises after a user selectable time delay and one instantaneous changeover contact which energises upon detection of the fault.

Brochure

PDF Download

OLR & UCR Brochure

Product Kits

PDF Download

OLR Kits

PDF Download

UCR Kits

Documentation

PDF Download

OLR Installation Manual 01A

PDF Download

UCR Installation Manual 01A

Presentation

PDF Download

OLR_Presentation

PDF Download

UCR_Presentation

Product List

Product Code OLR-8 SERIES  SINGLE  POLE  LOAD  CURRENT  MONITOR
  (PLUG-IN MODULE) COMPLETE WITH BASE
FPR0076 OLR 8 MC/S
FPR0538 OLR 84
FPR0813 OLR 84 S

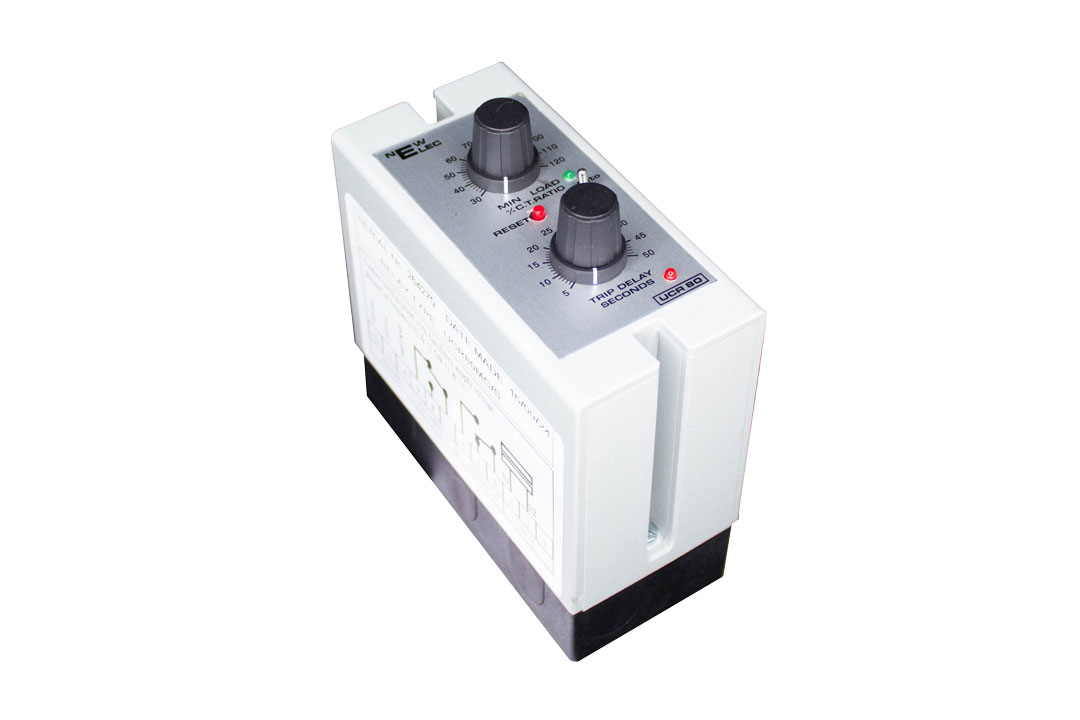

Product Code  UCR-80  SERIES  SINGLE  POLE  LOAD  CURRENT  MONITOR
 (PLUG-IN MODULE) COMPLETE WITH BASE
FPR0012 UCR80 MC/S
