NewCode Relays

Request Quote

*Compulsory fields.

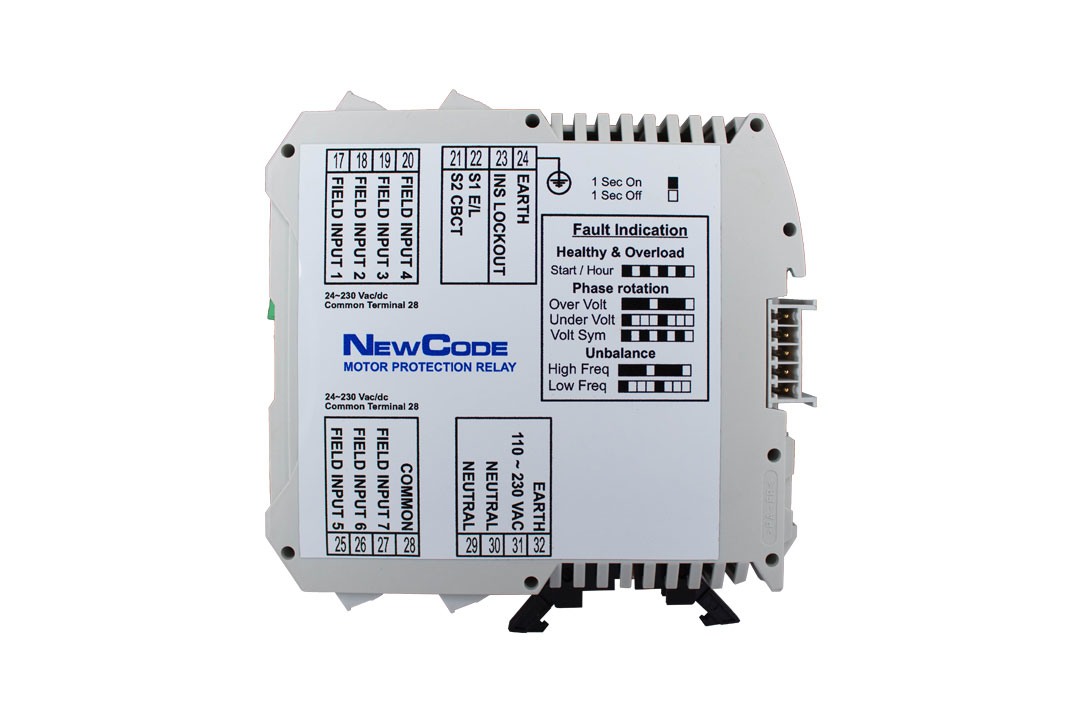

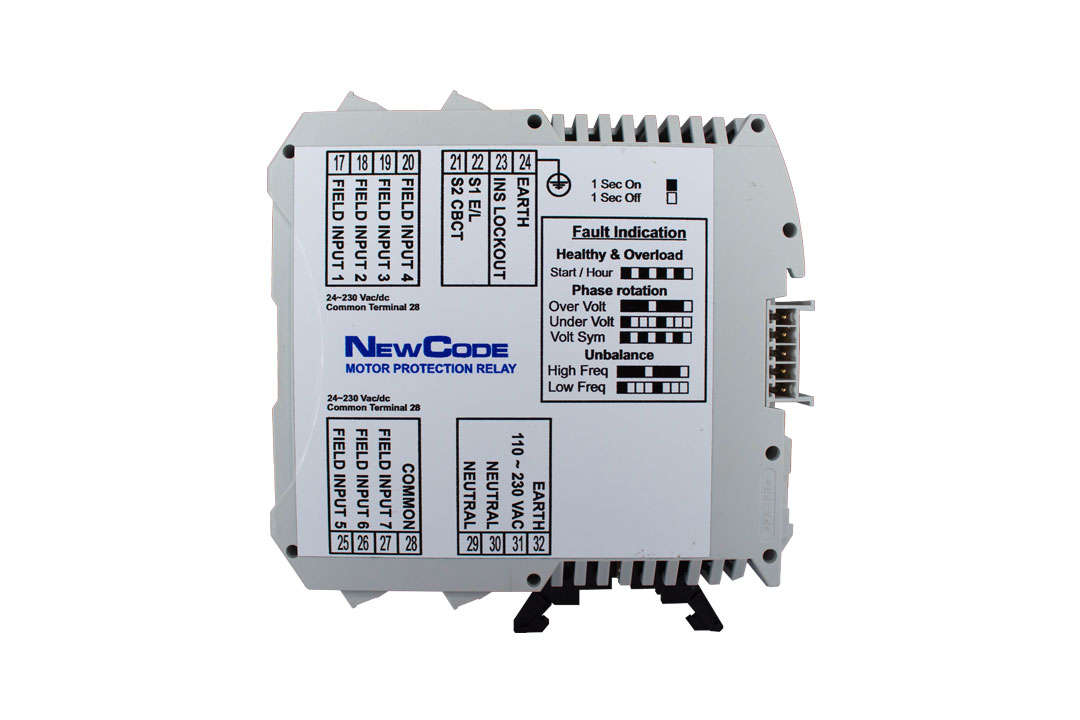

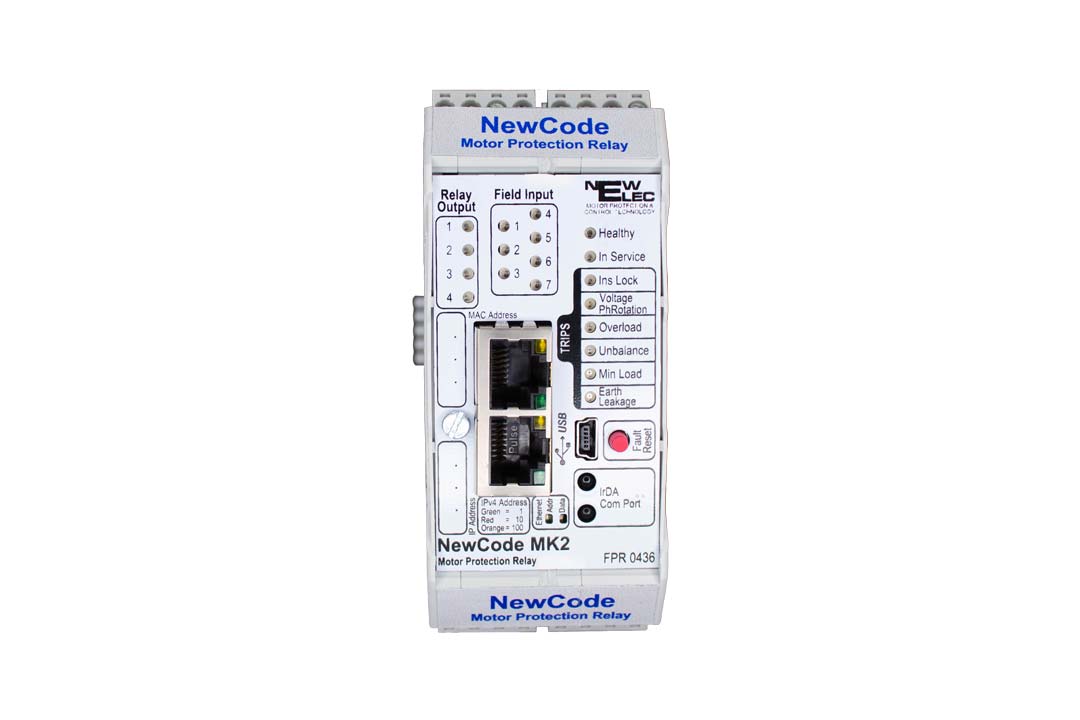

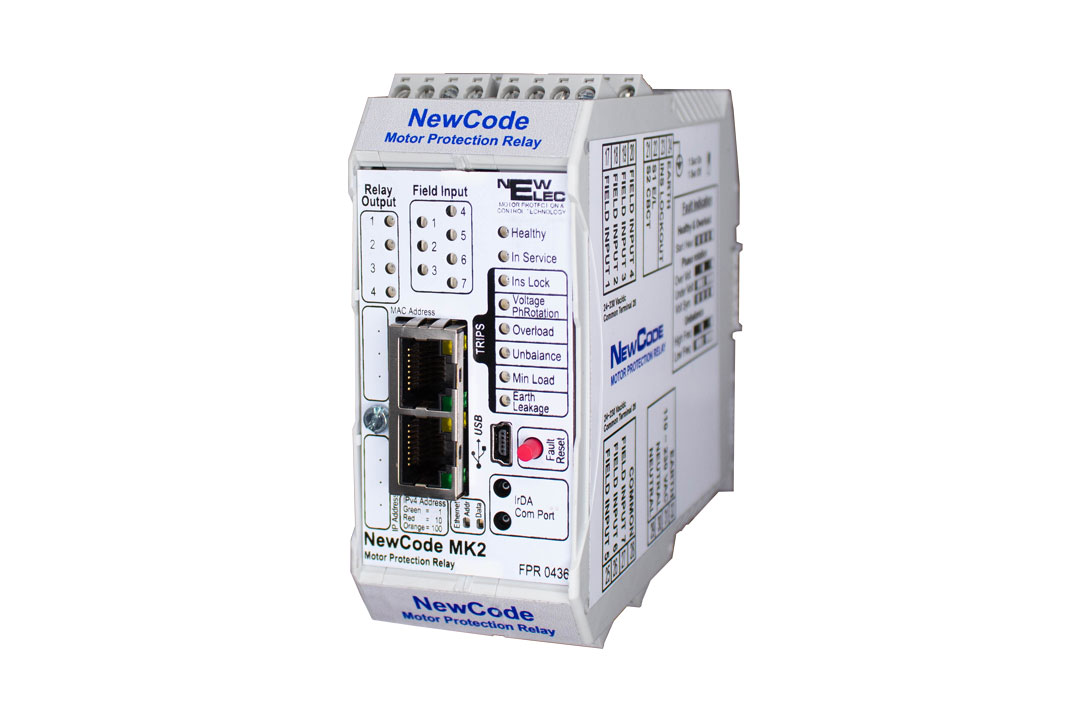

The NewElec NewCode motor protection and control relay provides thermal overload class 3 to class 35 (ANSI 49RMS), overcurrent (ANSI 50/51), unbalanced current (ANSI 46), breaker failure (ANSI 50F), inputs (ANSI 23), Earth Leakage , Earth Fault (ANSI 64) and Short Circuit protection(ANSI 51), Load loss protection ( ANSI 37), starts per hour (ANSI 66), over and under voltage protection (ANSI 59/27) and voltage symmetry, Power measurement displaying of active reactive as well as power factor, are all features available through the range 0,1amp to 300 amp. The integrated 10 to 100 and 30 to 300 C.T. Block also includes the Earth Leakage Core Balance C.T. Indication LEDs indication on all 7 x field inputs, 4x relay outputs as well as 8 fault indication le=LED indicators address the needs of maintenance personnel involved in fault finding

Description

More advanced features including starter logic and logic function blocks result in an all-encompassing relay, which, coupled with its communication options, make the NewCode relay an ideal solution for plant protection and automation. The NewCode relay comes standard with 7 field inputs,4 relay outputs, RTC time and date stamped 1200 events and the last 30 faults in addition the relay can power the following expansion modules via the integrated T Bus connection backplane mounted within the din rail on to which the modules clip and are secured. Expansion modules are a 8 x Input 4 x output as well as a dual 4 to 20 milliamp loop module 2 x input 2 x output loops,a fully configurable, temperature sensing module with 4 x 3 wire sensors configurable as PT100,PT100,PTC and NTC (5K) a 96 mm square panel mounted MMI with start and stop pushbuttons and a 4 x 20 display of settings and actual values provide maintenance personnel with all information on the MCC cubicle door

The NewElec NewCode front-end configuration software provides configuration and a recording feature enabling the recording of all motor load current, voltages and status of field inputs exported as a csv file as well as measurement and display of harmonics displayed in FFT format up to the 9th harmonic. NewCode front-end configuration software has been found to be invaluable to assist performance measurement and commissioning processes. The NewCode motor protection relay can be used as a standalone electronic motor protection relay or as part of an automated process communicating to a PLC via Profibus, Modbus RTU, ModEther ,Profinet or other popular communication protocols.

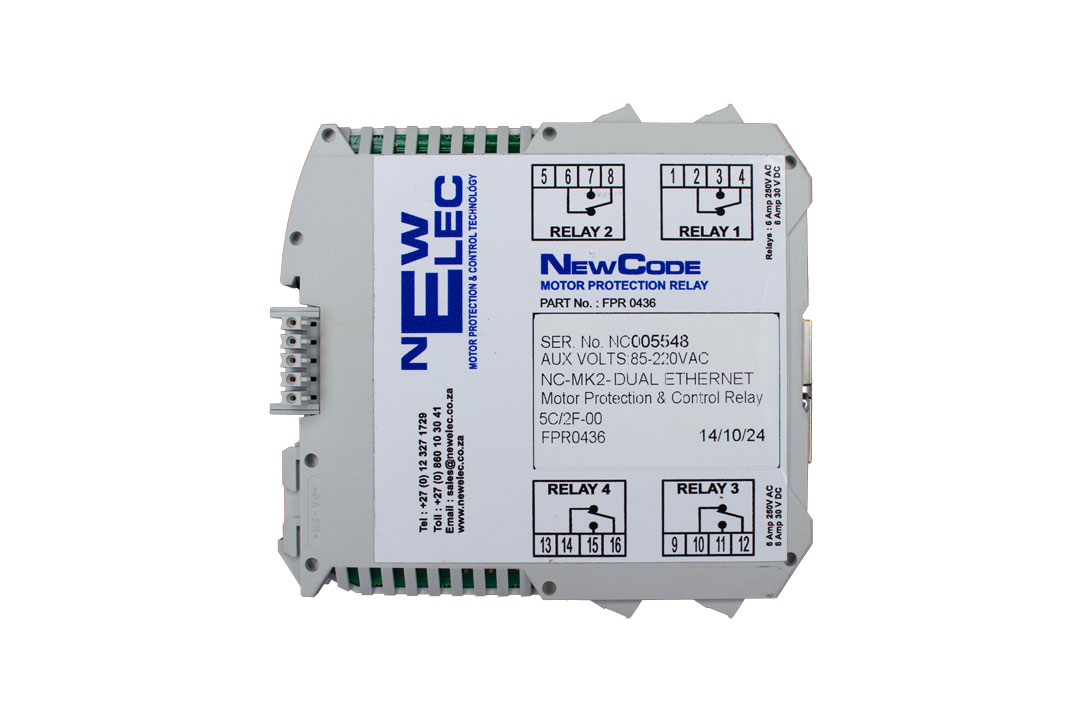

The NewCode motor control relay is equipped with 7 digital inputs accepting field supply voltages from 24 to 220V A.C. or D.C. and 4 potential free C/O contacts, all of which are programmable.
The NewCode relay is an ISO 9001:2000 compliant, locally designed and manufactured three phase electronic motor protection relay.

The relay is fully configurable with the aid of free front-end software or a man-machine interface unit (MMI).

Brochures

PDF Download

Newcode Relay Brochure

PDF Download

NewCode_Profinet Brochure 01A

PDF Download

Compressor Protection and Control System Flyer

PDF Download

32 Unit HMI Solution Flyer

Product Kits

PDF Download

Newcode Kits

Documentation

PDF Download

Newcode Profibus DP1 Manual

PDF Download

NC-MK1-MMI User manual 01A

PDF Download

NC-MK1-Modbus Manual 01B

PDF Download

NC-MK2-Modbus-TCP user manual 01A

PDF Download

NC 4 to 20mA User Manual 01A

PDF Download

NewCode Relay User Manual 02D

PDF Download

NewCode Basic Level Training Manual version 00

PDF Download

NewCode Intermediate Level Training Manual version 00

Presentations

PDF Download

NewCode_Presentation 01A

Firmware Updates

ZIP Download

ReadMe

ZIP Download

NC_ENC_1G-02

ZIP Download

NC-MK2 ENC 03G-01

ZIP Download

NC-MK2 ENC 03F-01

ZIP Download

NC-MK2 ENC 03E-02

ZIP Download

NC_ENC_4B-01

ZIP Download

NC_ENC_2E-02

ZIP Download

NC_ENC_2D-01

ZIP Download

NC_ENC_2C-06

Config Software

ZIP Download

NC Frontend Installation 03D

ZIP Download

NewCode USB Drivers 01A

Communication Protocol Config File

ZIP Download

NEWEF877

ZIP Download

NEWEF880

Other

ZIP Download

NC-Simulation Files 01A

ZIP Download

NC GSD F880 PLC Sample 01A

Product Part List

Product Code NewCode MK2 Motor Protection and Control Relay
NewCode MK2 Relay
FPR0650 NewCode MK2 with Profibus

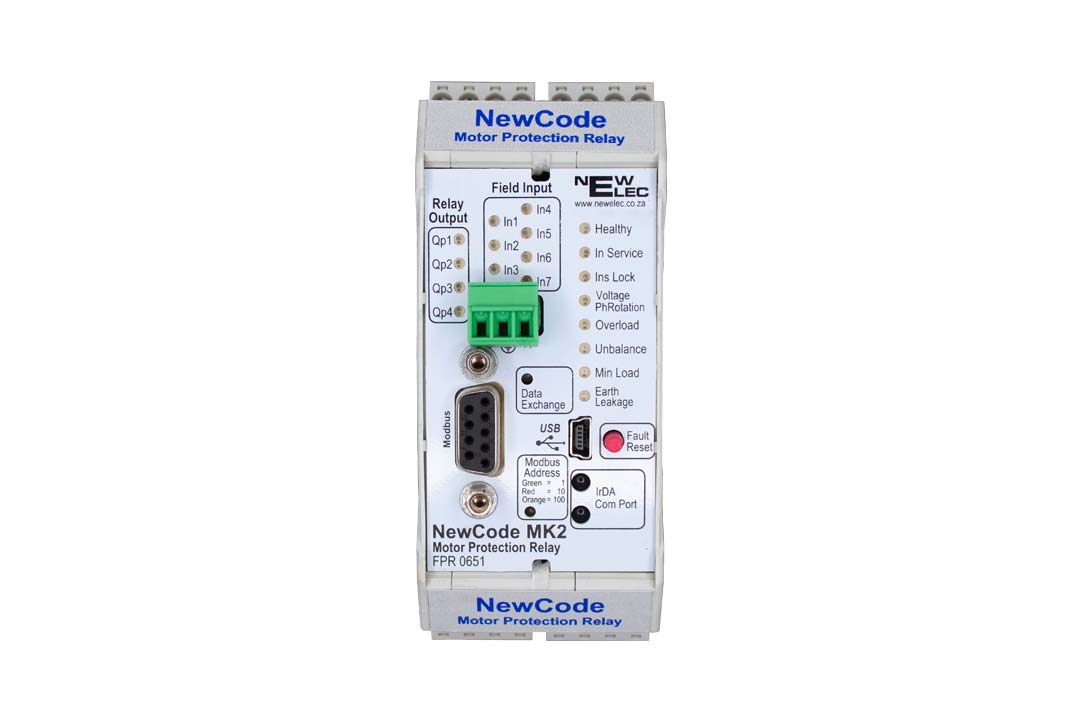

FPR0651 NewCode MK2 with Modbus
Current Module:
FPR0401 NC-300-CBCT-110/550 (30-300Amp 110-550Volt Conv)
FPR0402 NC-100-CBCT-110/550 (10-100Amp 110-550Volt Conv)
FPR0403 NC-01-110/550 (0.1-1Amp 110-550Volt Conv)
FPR0404 NC-05-110/550 (0.5-5Amp 110-550Volt Conv)
FPR0405 NC-25-110/550 (0.25-25Amp 110-550Volt Conv)
FPR0406 NC-50-110/550 (5-50Amp 110-550Volt Conv)
Communication Modules:
FPR0653 NC – Profinet Comms Module
FPR0654 NC – ModTCP Comms Module
NewCode MK2 Cables and Accessories
FPR0408 NC-CT-CAB-1000-1m (Current Conv to NC Conn Cable)
FPR0409 NC-CT-CAB-1000-500mm (Current Conv to NC Conn Cable)
FPR0410 NC-CT-CAB-1000-300mm (Current Conv to NC Conn Cable)
FPR0411 NC-CT-CAB-1000-100mm (Current Conv to NC Conn Cable)
FPR0422 NC DINRAIL – RJ11 12C
FPR0407 NC-MM-I2C-TBUS (External Settings Memory Model)
FPR0412 NC-MK1-Expanded-I/O
FPR0413 NC-MK2-RTD-04 RTD/PTC Temp Module
FPR0414 NC – MMI – 420 Door Display
FPR0415 NC-MK1-420-02-02 2X40-20mA Input/Output
